Recessed Contacts

TANE Recessed alarm contacts are available in diameters ranging from .25”(6.4mm) to 1”(25mm),
in Closed Loop, Open Loop, SPDT and DPDT configurations, with wire leads or terminal-connections.*

We can mix and match switches with encapsulated or bare rare earth magnets to achieve extra
wide gaps. Our factory can design, engineer and manufacture custom built recessed contacts; or
private label existing models.

* Depending on model selected

	Part Number	Description	Gap Inch (mm)
	STB-10	.35” x .75” Recessed W/12″ Wire Leads	.60″

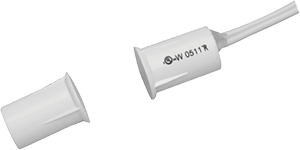

	MINI-10	.37″×.61″ Recessed W/12″ Wire Leads	.50″(12.5)

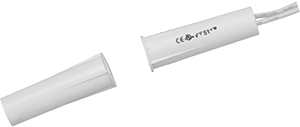

	TAP-10	.37″×1.26″ Recessed W/12″ Wire Leads	.60″(15)

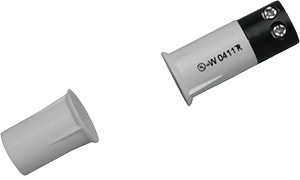

	STB-3/8 TC	.37″×.92″ Recessed Terminal Connect	.60″(15)

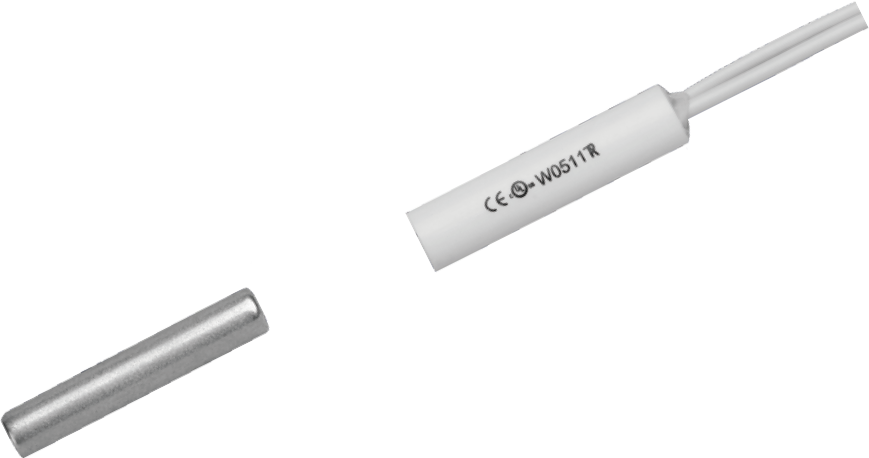

	TAP-15	.25″×1.06″ Recessed W/12″ Wire Leads	.60″(15)
	SD-70	.75″×.84″ Recessed W/12″ Wire Leads	1.1″(28)

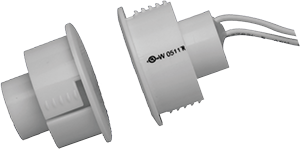

	SD-80	1″×.84″ Recessed W/12″ Wire Leads	1.1″(28)

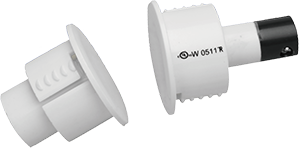

	TANE-3/4 TC	.75″×1.18″ Recessed W/Terminal Connect	1.1″(28)

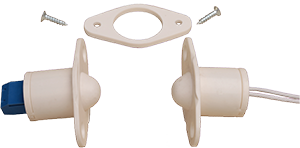

	TANE-22 & TANE-22 TC	.73″×1.21″(TANE-22) .73″×1.6″(TANE-22TC) Recessed W/12″ Wire Leads(TANE-22) W/Terminals(TANE-22TC)	NA

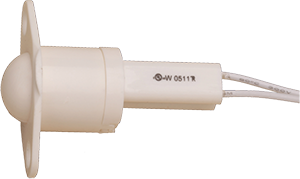

	RB-32	.72″×1.89″ Recessed W/12″ Wire Leads	NA

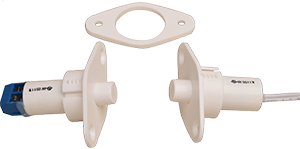

	PB-52 & PB-52 TC	.75″×1.7″(PB-52) .75″×1.73″(PB-52TC) Recessed W/12″ Wire Leads(PB-52) W/Terminals(PB-52TC)	NA

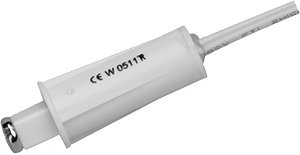

	TANE-3/8 ASH	.35″×1.2″ Recessed W/12″ Wire Leads	NA

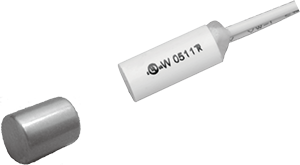

	MINI-15	.25″×.57″ Recessed W/12″ Wire Leads	.50″(12.5)
	MINI-DISC	.59″×.25″ Recessed W/12″ Wire Leads	.31″(8)

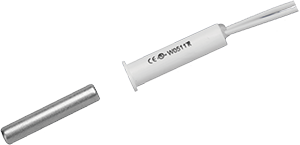

	RFM-25	.25″×1.06″ Recessed W/12″ Wire Leads	.71″(18)
