TANE Overhead, Mini-Overhead, Track Mount and Curtain Door commercial grade alarm contacts feature armored cases with wire leads or armored cables; in Closed Loop, Open Loop and SPDT configurations.*
Our factory can design, engineer and manufacture custom built commercial contacts or private label existing models.
* Depending on model selected
Scroll or swipe left to right on the table below for more information.
| Part Number | Description | Gap Inch (mm) | |
|---|---|---|---|
 |

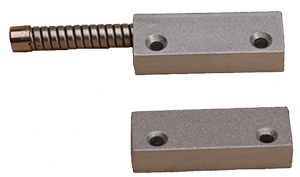

MET-200 | 2″L×.74″W×.37″H Commercial Grade Surface Mount W/18″ Armored Cable |
1.25″(32) |
 |
SM-20 WG | 4.13″L×.65″W×.63″H Commercial Grade Surface Mount W/18″ Jacketed Wire Leads |
2″(50) |
 |
MET-44 WG | 4.22″L×1.73″W×.47″H Commercial Grade Surface Mount-Overhead Door W/18″ or 36″ Armored Cable |
2″(50) |
 |

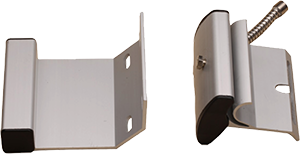

TANE-66 WG | 2.76″L×3.15″W×1.57″H Commercial Grade Rail Mount-Overhead Door W/18″ or 36″ Armored Cable |
2.5″(64) |
 |

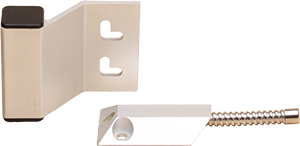

TANE-86 | 2.13″L×1.37″W×.37″H Commercial Grade Surface Mount-Overhead Door W/18″ or 36″ Armored Cable |
2.5″(64) |
 |

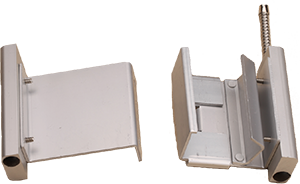

TANE-96 | 2.91″L×3.05″W×1.84″H Commercial Grade Bi-Directional Overhead Door Rail Mount-Bi fits 2.5″ rails W/18″ or 36″ Armored Cable |
2.5″(64) |
 |
MET-CDS | 2.68″L×.95″W×.54″H Commercial Grade Bi-Directional Curtain Door Switch Rollup Door Mount W/Reversible Assembly W/36″ Armored Cable |
3.15″(80) |
