RFM-25

RFM-25.25″(6.3mm) × 1.06″(26.8mm) Recessed Type

Contact Size: .25″×1.06″(6.35mm×26.8mm)
Standard Magnet Size: .25″×1″(6.35mm×25.4mm)
Standard Gap: .71″(18mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • PDF Document
  • C UL US Listed
  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part NumberGap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
RFM-25.71″(18)CLOSEDNormally
Open
10100AC110/DC1000.5
* RFM-26B
(Special Order)
.4″(10)OPENNormally
Closed
3100AC30/DC300.2
* RFM-27C
(Special Order)
.4″(10)SPDTSPDT3100AC30/DC300.2

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing


Outline Dimensions Unit: inch(mm)

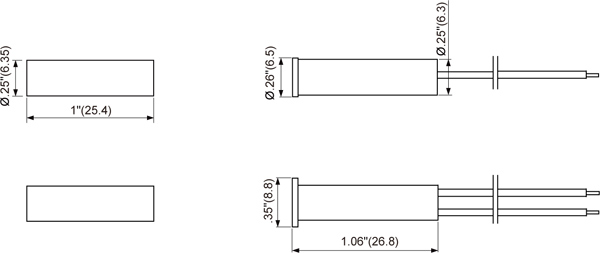

RFM-25/RFM-26B

RFM-25/RFM-26B

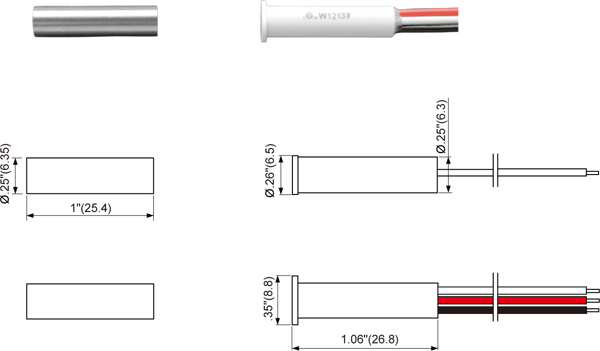

RFM-27C

RFM-27C

RFM-27C Wiring Diagram

RFM-27C Wiring Diagram

PDF Document Installation Instructions


PDF Document
