.35″×.75″(9mm×19mm) STUBBY TYPE
Contact Size: .35″×.75″(9mm×19mm)
Standard Magnet Size: .35″×.75″(9mm×19mm)
Standard Gap: 0.6″(15mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available.
Specifications
Scroll or swipe left to right on the table below for more information.
| Part Number | Gap Inch (mm) |
Loop Open/Closed |
Reed Form |
Max. Contact Rating (W) |
Max. Initial Contact Resistance (mΩ) |
Max. Switching Voltage (V) |
Max. Switching Current (A) |
|---|---|---|---|---|---|---|---|
| STB-10 | .6″(15) | CLOSED | Normally Open |
10 | 100 | AC110/DC100 | 0.5 |
| STB-11B | .5″(12.5) | OPEN | Normally Closed |
3 | 100 | AC30/DC30 | 0.2 |
| STB-10 WG | 1.26″(32) | CLOSED | Normally Open |
10 | 100 | AC110/DC100 | 0.5 |
| STB-10 DM | .5″(12.5) | CLOSED | Normally Open |
10 | 100 | AC110/DC100 | 0.5 |
| STB-10 W/MINI |
.6″(15) | CLOSED | Normally Open |
10 | 100 | AC110/DC100 | 0.5 |
| STB-10 W/FLT |
.47″(12) | CLOSED | Normally Open |
10 | 100 | AC110/DC100 | 0.5 |
| *STB-12C Special Order |
.5″(12.5) | SPDT | SPDT | 3 | 100 | AC30/DC30 | 0.2 |
OPERATING TEMPERATURE:-40°C to +60°C
* SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing
Outline Dimensions Unit: inch(mm)

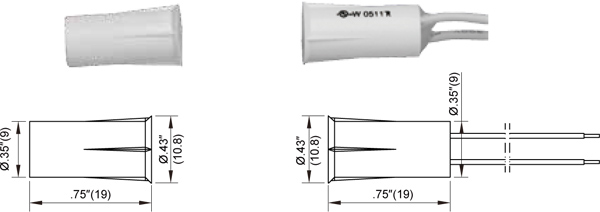

STB-10/STB-11B

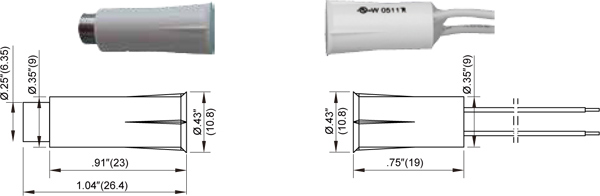

STB-10 WG

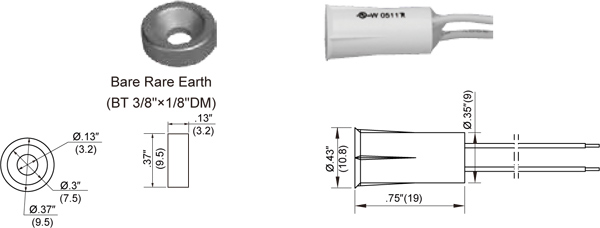

STB-10 DM

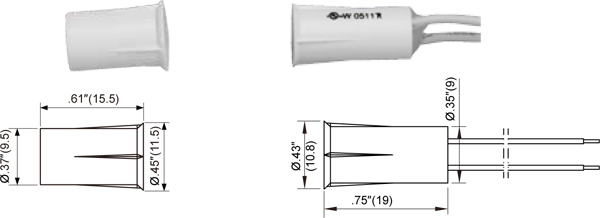

STB-10 W/MINI

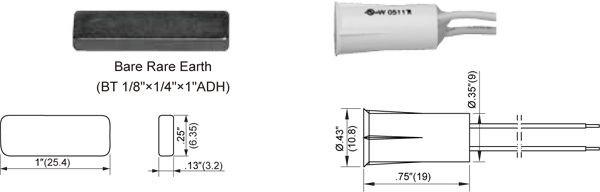

STB-10 W/FLT
STB-12C
STB-12C Wiring Diagram
