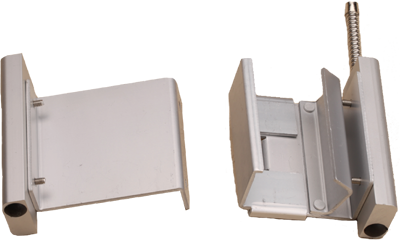

TANE-96

TANE-96Bi-Directional Overhead Door-Track Mount Type For 2 1/2″ Residential or 3 1/2″ Commercial Rails

Contact Size: 3.21″L×3.05″W×1.84″H
(81.6mm×77.4mm×46.75mm)
Standard Magnet Size: 3.5″L×3.96″W×1.65″H
(88.8mm×100.5mm×41.95mm)
Standard Gap: 2.5″(64mm)
Colors: Aluminum Case
18″(458mm) Armored Leads Standard
36″(915mm) Armored Leads Available

  • PDF Document
  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part NumberGap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE-96 Bi2.5″(64)CLOSEDNormally
Open
10100AC110/DC1000.5
* TANE-97 Bi
Special Order
2.2″(55)OPENNormally
Closed
3100AC30/DC300.2
TANE-98 Bi2.2″(55)SPDTSPDT3100AC30/DC300.2
TANE-96 Bi LG2.5″(64)CLOSEDNormally
Open
10100AC110/DC1000.5
* TANE-97 Bi LG
Special Order
2.2″(55)OPENNormally
Closed
3100AC30/DC300.2
TANE-98 Bi LG2.2″(55)SPDTSPDT3100AC30/DC300.2

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing

Note:
Use TANE-96 Bi Contacts for 2.5″  Residential Tracks.
Use TANE-96 Bi LG Contacts for 3.5″ Commercial Tracks.


Outline Dimensions Unit: inch(mm)

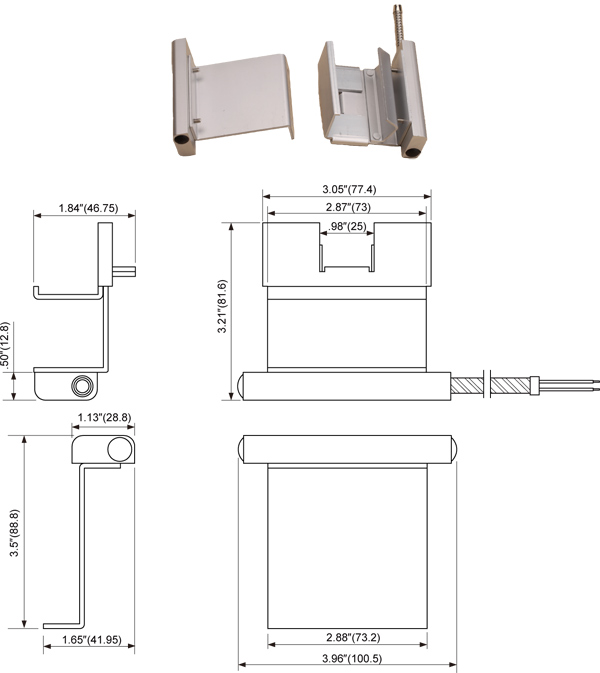

TANE-96 Bi/TANE-97 Bi

TANE-96 Bi/TANE-97 Bi

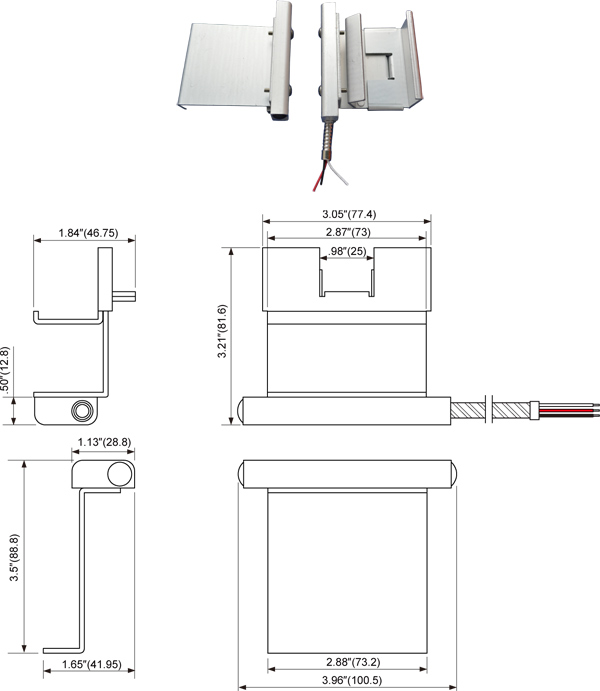

TANE-98 Bi

TANE-98 Bi

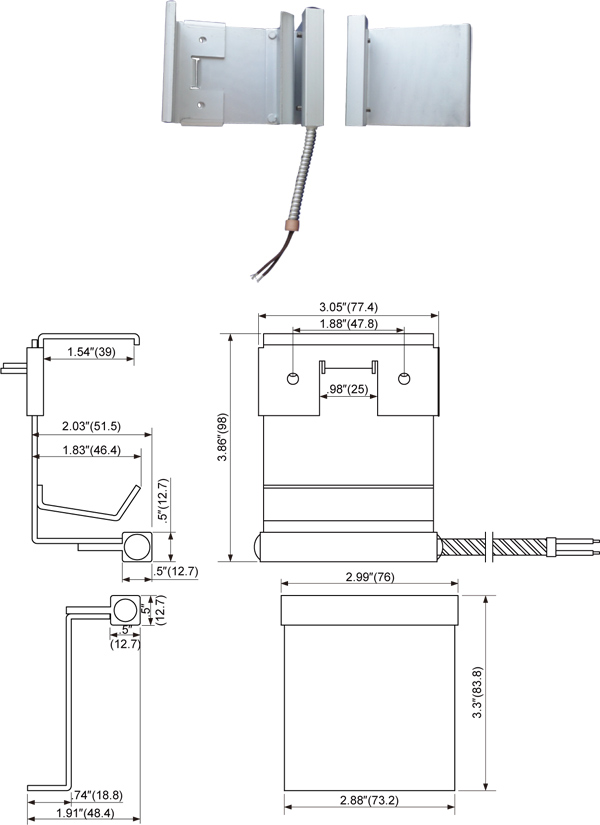

TANE-96 Bi LG/TANE-97 Bi LG

TANE-96 Bi LG/TANE-97 Bi LG

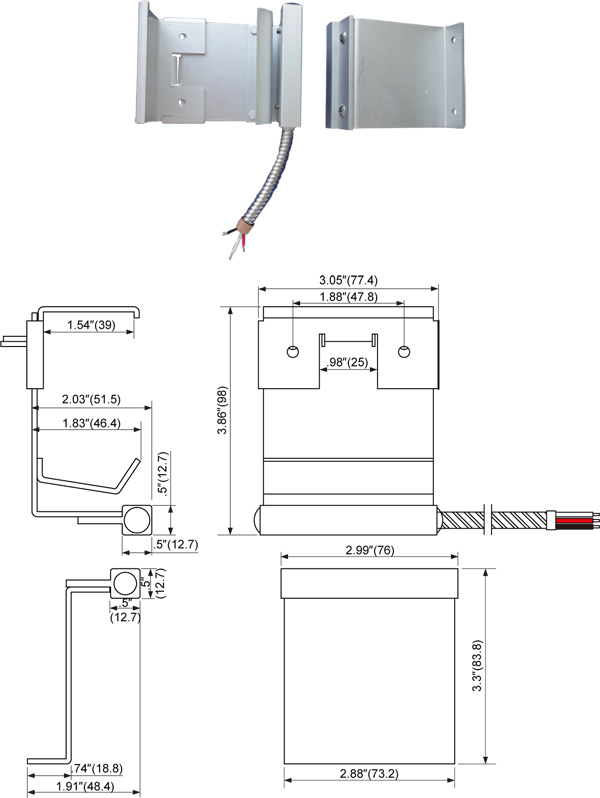

TANE-98 Bi LG

TANE-98 Bi LG

TANE-98 Bi/TANE-98 Bi LG Wiring Diagram

TANE-98 Bi/TANE-98 Bi LG Wiring Diagram

PDF Document Installation Instructions


PDF Document
