Surface Mount Type
Contact Size: 2.26″L×1″W×.22″H
(57.3mm×25.2mm×5.7mm)
Standard Magnet Size: 1.31″L×.45″W×.32″H
(33.3mm×11.3mm×8mm)
Standard Gap: 1″(25mm)
Colors: White, Brown
Unit weight: 10g
Wireless Signal Range: 375 ft, open air, with Wireless Control Panel
FCC ID: 2AUTX-TWC
IC: 25828-TWC
Specifications
Scroll or swipe left to right on the table below for more information.
| Part Number | Gap Inch (mm) | Reed Form | Frequency | Transmission |
|---|---|---|---|---|
| TWC 345R | 1″(25) | Normally Open | 345 | ASK |
| TWC 319.5R | 1″(25) | Normally Open | 319.5 | ASK |
OPERATING TEMPERATURE:-10°C to +50°C(14°F to 122°F)
RELATIVE HUMIDITY:5% to 93%

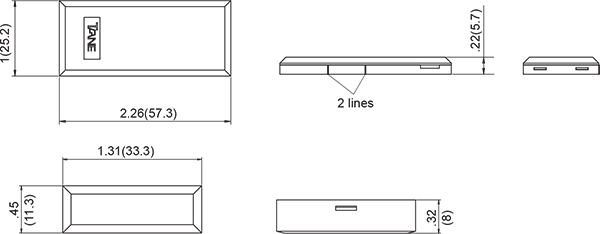

Outline Dimensions Unit: inch(mm)
Mount Transmitter and Magnet
1. Mount the TWC on any widow or door frame using the supplied double-sided tape.
2. Find the 2 lines on the outside of the TWC 345R &TWC 319.5R cover. Align the center of the magnet with the line for TWC 345/319.5R. Make sure the distance is not greater than 5/8 of an inch.
