TANE PILL

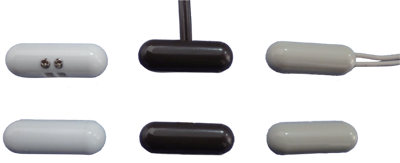

TANE PILL1.1″L×.37″W×.19″H Surface Mount Type W/Center Leads, Side Lead or Terminal Connects

Contact Size: 1.1″L×.37″W×.19″H
(27.8mm×9.5mm×4.75mm)
Standard Magnet Size: 1.1″L×.37″W×.19″H
(27.8mm×9.5mm×4.75mm)
Standard Gap: .5″(12.5mm)
Colors: White, Brown, Tan
12″(305mm) 22 AWG Leads Standard
“TC” Version No Leads

  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE PILL .5″(12.5) CLOSED Normally
Open
10 100 AC110/DC100 0.5
TANE PILL SL .5″(12.5) CLOSED Normally
Open
10 100 AC110/DC100 0.5
TANE PILL TC .5″(12.5) CLOSED Normally
Open
10 100 AC110/DC100 0.5
TANE PILL OL .43″(11) OPEN Normally
Closed
3 100 AC30/DC30 0.2

OPERATING TEMPERATURE:-40°C to +60°C


Outline Dimensions Unit: inch(mm)

TANE PILL/TANE PILL OL

TANE PILL/TANE PILL OL

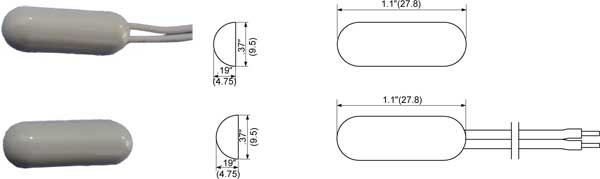

TANE PILL SL

TANE PILL SL

TANE PILL TC

TANE PILL TC
