TANE MICRO

TANE MICRO.67″L×.31″W×.16″H Surface Mount Type Ultra Mini Type W/Center Leads

Contact Size: .67″L×.31″W×.16″H
(17mm×8mm×4mm)
Standard Magnet Size: .67″L×.31″W×.16″H
(17mm×8mm×4mm)
Standard Gap: .32″(8mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available

  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE MICRO .32″(8) CLOSED Normally
Open
1 100 AC24/DC24 0.1

OPERATING TEMPERATURE:-40°C to +60°C

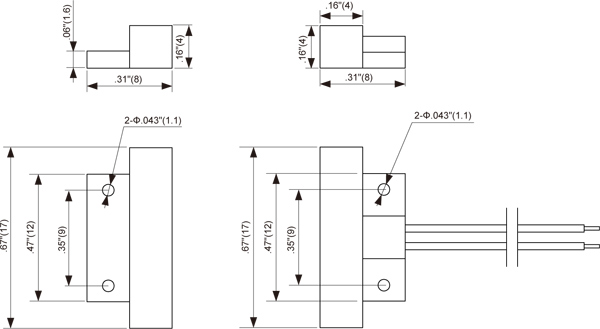

Outline Dimensions Unit: inch(mm)

TANE MICRO

TANE-MICRO-Outline-Dimensions

PDF Document Installation Instructions


PDF Document
