TANE GP-23

TANE GP-231.97″L×.55″W×.47″H Surface Mount Type W/Hidden Wires and Screws

Contact Size: 1.97″L×.55″W×.47″H
(50mm×14mm×12mm)
Standard Magnet Size: 1.98″L×.56″W×.48″H
(50.3mm×14.1mm×12.2mm)
Standard Gap: 1.26″(32mm)
Colors: White, Brown, Gray

  • PDF Document
  • C UL US Listed
  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part NumberGap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE GP-231.26″(32)CLOSEDNormally
Open
10100AC110/DC1000.5
TANE GP-24B.95″(24)OPENNormally
Closed
3100AC30/DC300.2
* TANE GP-23 WG
Special Order
1.5″(38)CLOSEDNormally
Open
10100AC110/DC1000.5

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing

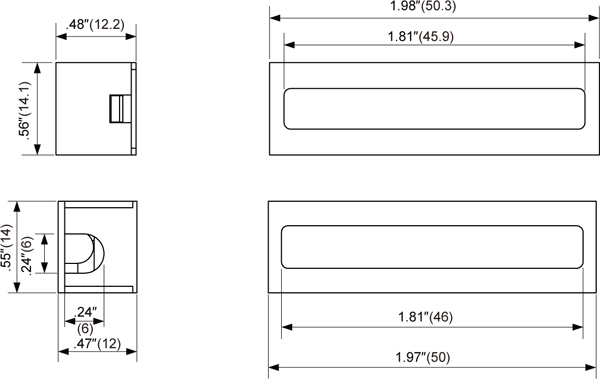

Outline Dimensions Unit: inch(mm)

TANE GP-23/TANE GP-24B/TANE GP-23 WG

TANE GP-23/TANE GP-24B/TANE GP-23 WG

PDF Document Installation Instructions


PDF Document
