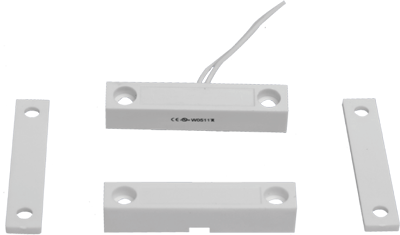

TANE-55

TANE-552″L×.38″W×.39″H Center Lead Surface Mount Type

Contact Size: 2″L×.38″W×.39″H
(50.8mm×9.6mm×10mm)
Standard Magnet Size: 2″L×.38″W×.39″H
(50.8mm×9.6mm×10mm)
Standard Gap: .75″(19mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • PDF Document
  • C UL US Listed
  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part NumberGap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE-55.75″(19)CLOSEDNormally
Open
10100AC110/DC1000.5
* TANE-55 WG
Special Order
1.26″(32)CLOSEDNormally
Open
10100AC110/DC1000.5
* TANE-56B
Special Order
.75″(19)OPENNormally
Closed
3100AC30/DC300.2
* TANE-57C
Special Order
.75″(19)SPDTSPDT3100AC30/DC300.2

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing


Outline Dimensions Unit: inch(mm)

TANE-55/TANE-55 WG/TANE-56B

TANE-55/TANE-55 WG/TANE-56B

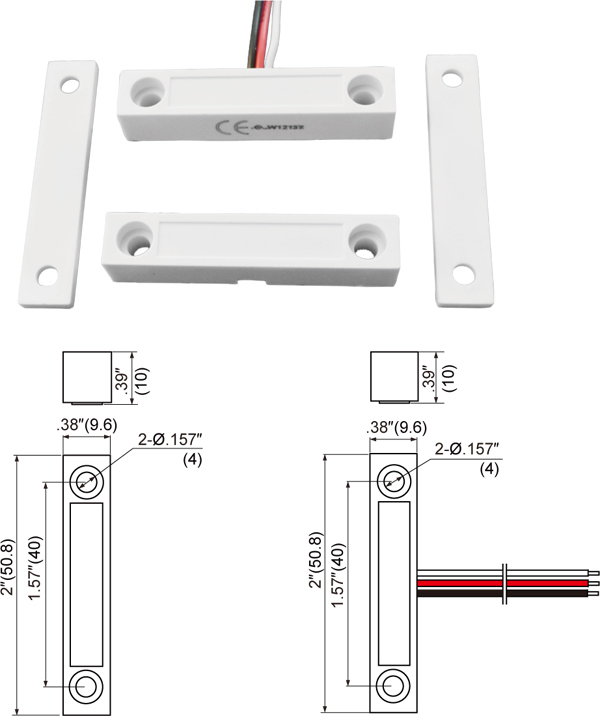

TANE-57C

TANE-57C

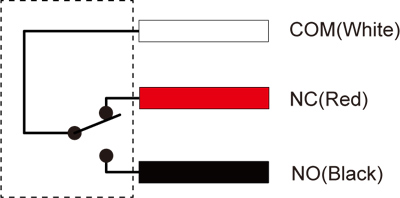

TANE-57C Wiring Diagram

TANE-57C Wiring Diagram

PDF Document Installation Instructions


PDF Document
