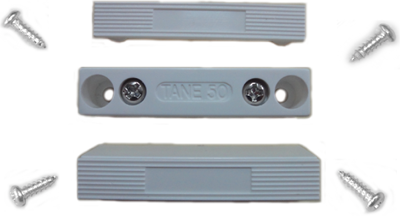

TANE-50

TANE-501.91″L×.43″W×.63″H Surface Mount Quick Connect Type

Contact Size: 1.91″L×.43″W×.63″H
(48.5mm×11mm×16mm)
Standard Magnet Size: 2″L×.37″W×.63″H
(48.5mm×9.5mm×16mm)
Standard Gap: .75″(19mm)
Colors: White, Brown

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE-50 .75″(19) CLOSED Normally
Open
10 100 AC110/DC100 0.5
* TANE-51B
Special Order
.63″(16) OPEN Normally
Closed
3 100 AC30/DC30 0.2

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing

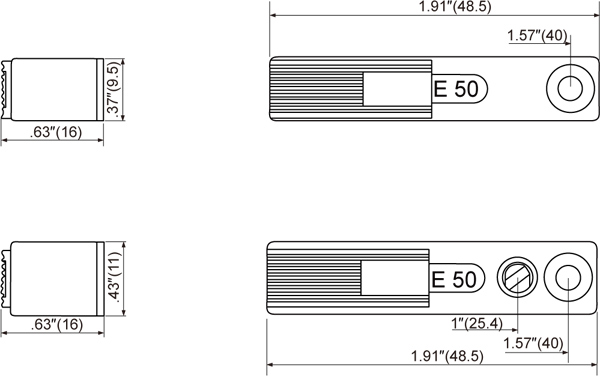

Outline Dimensions Unit: inch(mm)

TANE-50/TANE-51B

TANE-50/TANE-51B
