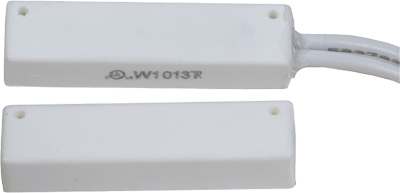

TANE-45

TANE-451.06″L×.27″W×.19″H Surface Mount Type W/Super Stick Adhesive

Contact Size: 1.06″L×.27″W×.19″H
(26.9mm×6.85mm×4.75mm)
Standard Magnet Size: 1.06″L×.27″W×.19″H
(26.9mm×6.85mm×4.75mm)
Standard Gap: .44″(11mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE-45 .44″(11) CLOSED Normally
Open
1 100 AC24/DC24 0.1

OPERATING TEMPERATURE:-40°C to +60°C

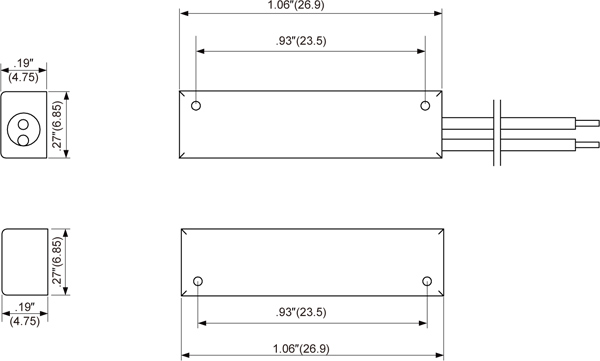

Outline Dimensions Unit: inch(mm)

TANE-45

TANE-45
