SS-40

SS-401.24″L×.31″W×.31″H Surface Mount Type W/Super Stick Adhesive

Contact Size: 1.24″L×.31″W×.31″H
(33mm×8mm×8mm)
Standard Magnet Size: 1.24″L×.31″W×.31″H
(33mm×8mm×8mm)
Standard Gap: .71″(18mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
SS-40 .71″(18) CLOSED Normally
Open
10 100 AC110/DC100 0.5
* SS-41B
Special Order
.59″(15) OPEN Normally
Closed
3 100 AC30/DC30 0.2
* SS-42C
Special Order
.59″(15) SPDT SPDT 3 100 AC30/DC30 0.2

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing


Outline Dimensions Unit: inch(mm)

SS-40/SS-41B

SS-40/SS-41B

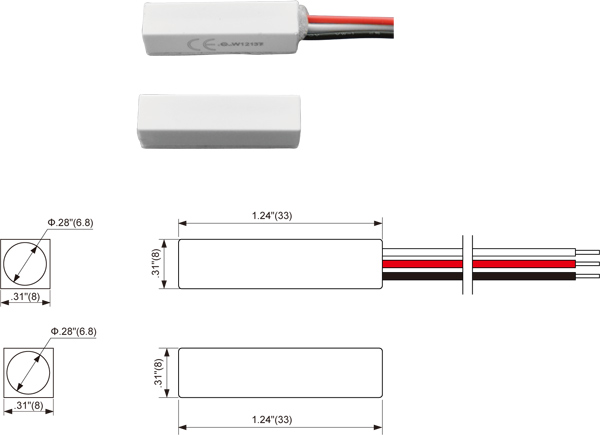

SS-42C

SS-42C

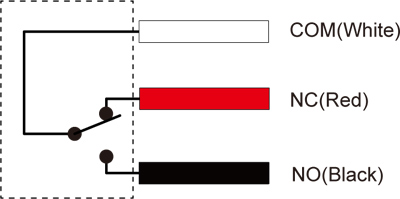

SS-42C Wiring Diagram

SS-42C Wiring Diagram
