SM-35

SM-352.48″L×.48″W×.51″H Surface Mount Quick Connect-W/Spacers Screws Covers

Contact Size: 2.48″L×.48″W×.51″H
(63mm×12.2mm×13mm)
Standard Magnet Size: 2.48″L×.48″W×.51″H
(63mm×12.2mm×13mm)
Standard Gap: .91″(23mm)
Colors: White, Brown, Gray
Resistors Available: Add “R” to part # and Value

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
SM-35 .91″(23) CLOSED Normally
Open
10 100 AC110/DC100 0.5
SM-35B .75″(19) OPEN Normally
Closed
3 100 AC30/DC30 0.2
SM-35 WG 1.26″(32) CLOSED Normally
Open
10 100 AC110/DC100 0.5
SM-35C .75″(19) SPDT SPDT 3 100 AC30/DC30 0.2

OPERATING TEMPERATURE:-40°C to +60°C


Outline Dimensions Unit: inch(mm)

SM-35/SM-35B/SM-35 WG

SM-35/SM-35B/SM-35 WG

SM-35C

SM-35C

SM-35C

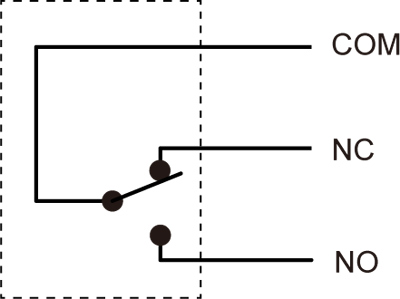

SM-35C Wiring Diagram

SM-35C Wiring Diagram

PDF Document Installation Instructions
