Surface Mount Contacts

TANE Surface Mount alarm contacts are available in wired or terminal-connect models, in sizes
ranging from our smallest TANE MICRO, to the powerful commercial grade TANE SM-20 WG.
Closed Loop, Open Loop, and SPDT configurations are available in addition to wide gap options.*

Our factory can design, engineer and manufacture custom built surface mount contacts, or private label existing models.

* Depending on model selected

Scroll or swipe left to right on the table below for more information.
Part Number Description Gap Inch (mm)
FM-102 FM-102 1.32″L×.53″W×.3″H
Surface Mount
W/12″ Wire Leads
.83″(21)
FM-106 FM-106 1.32″L×.51″W×.3″H
Surface Mount
W/12″ Wire Leads
.83″(21)

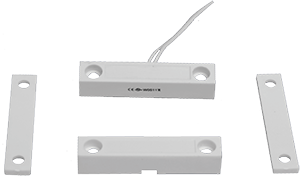

TANE-55 TANE-55 2″L×.38″W×.39″H
Surface Mount
W/12″ Wire Leads
.75″(19)

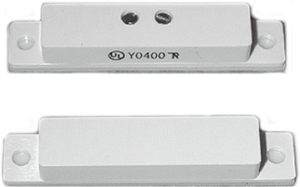

TANE-60 QC TANE-60 QC 2″L×.37″W×.28″H
Surface Mount
W/Terminal Connect
.71″(18)
TANE-50 TANE-50 1.91″L×.43″W×.63″H
Surface Mount
W/Terminal Connect
.75″(19)

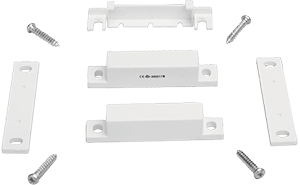

SM-35 SM-35 2.48″L×.48″W×.51″H
Surface Mount
W/Terminal Connect
.91″(23)
TANE GP-23 TANE GP-23 1.97″L×.55″W×.47″H
Surface Mount
W/Terminal Connect
1.25″(32)
TANE-45 TANE-45 1.06″L×.27″W×.19″H
Surface Mount
W/12″ Wire Leads
.44″(11)

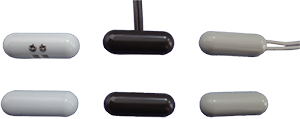

TANE PILL TANE PILL 1.1″L×.37″W×.19″H
Surface Mount
W/Terminal Connect(TC)
W/12″ Wire Leads (Side[SL]
& Center [TANE PILL])
.5″(12.5)

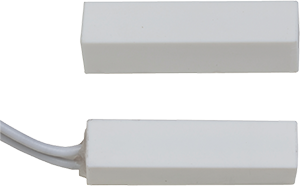

SS-40 SS-40 1.24″L×.31″W×.31″H
Surface Mount
W/12″ Wire Leads
.71″(18)
TANE MICRO TANE MICRO .67″L×.31″W×.16″H
Surface Mount
W/12″ Wire Leads
.32″(8)
