TAP-15

TAP-15.25″(6.4mm) Recessed Type

Contact Size: .25″×1.06″(6.4mm×26.9mm)
Standard Magnet Size: .25″×1″(6.35mm×25.4mm)
Standard Gap: .6″(15mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TAP-15 .6″(15) CLOSED Normally
Open
10 100 AC110/DC100 0.5
*TAP-16B
Special Order
.5″(12.5) OPEN Normally
Closed
3 100 AC30/DC30 0.2
*TAP-15 WG
Special Order
1.26″(32) CLOSED Normally
Open
10 100 AC110/DC100 0.5
*TAP-17C
Spercial Order
.5″(12.5) SPDT SPDT 3 100 AC30/DC30 0.2

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing


Outline Dimensions Unit: inch(mm)

TAP-15/TAP-16B

TAP-15/TAP-16B

TAP-15 WG

TAP-15 WG

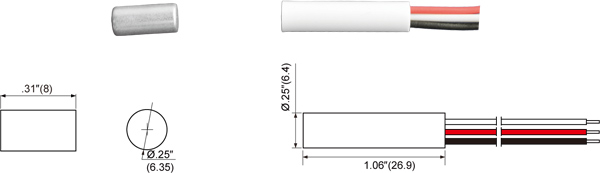

TAP-17C

TAP-17C

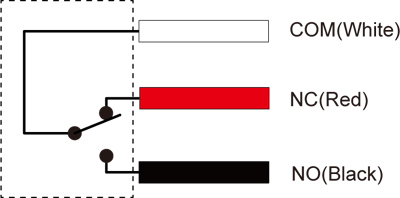

TAP-17C Wiring Diagram

TAP-17C Wiring Diagram
