TAP-10

TAP-10.37″(9.5mm) Recessed Type

Contact Size: .37″×1.26″(9.5mm×32mm)
Standard Magnet Size: .37″×1.26″(9.5mm×32mm)
Standard Gap: .6″(15mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TAP-10 .6″(15) CLOSED Normally
Open
10 100 AC110/DC100 0.5
TAP-11B .6″(15) OPEN Normally
Closed
3 100 AC30/DC30 0.2
TAP-10 WG 1.26″(32) CLOSED Normally
Open
10 100 AC110/DC100 0.5
TAP-10 W/
MINI MAG
.6″(15) CLOSED Normally
Open
10 100 AC110/DC100 0.5
*TAP-10 FM
Special Order
.6″(15) CLOSED Normally
Open
10 100 AC110/DC100 0.5
*TAP-11B FM
Special Order
.6″(15) OPEN Normally
Closed
3 100 AC30/DC30 0.2
TAP-12C .6″(15) SPDT SPDT 3 100 AC30/DC30 0.2

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing


Outline Dimensions

TAP-10/TAP-11B

TAP-10/TAP-11B

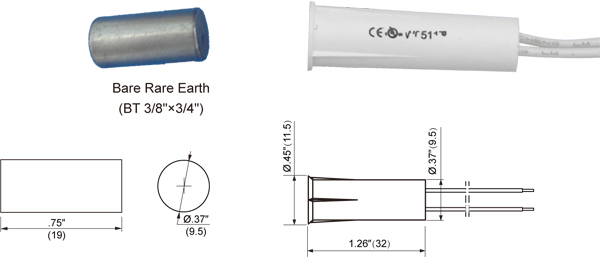

TAP-10 WG

TAP-10 WG

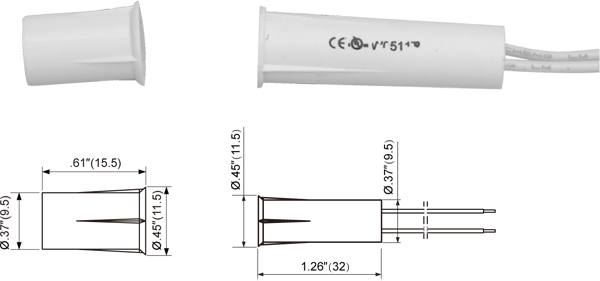

TAP-10 W/MINI MAG

TAP-10 W/MINI MAG

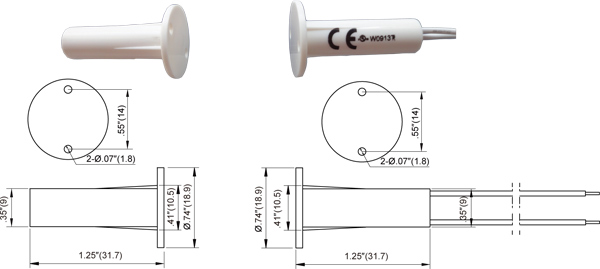

TAP-10 FM/TAP-11B FM

TAP-10 FM/TAP-11B FM

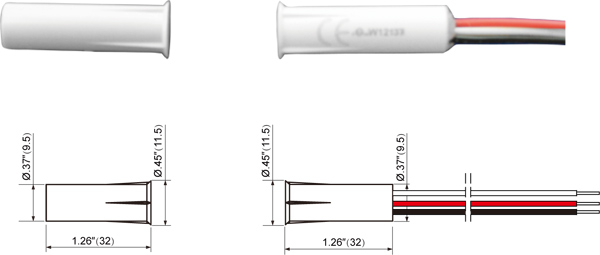

TAP-12C

TAP-12C

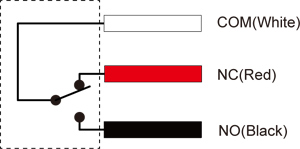

TAP-12C Wiring Diagram

TAP-12C Wiring Diagram
