TANE-3/4 TC

TANE-3/4 TC.76″(19.4mm) Recessed Type W/Terminal Quick-Connect

Contact Size: .75″×1.18″(19.05mm×30mm)
Standard Magnet Size: .76″×.85″(19.05mm×21.5mm)
Standard Gap: 1.1″(28mm)
Colors: White, Brown

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE-3/4 TC 1.1″(28) CLOSED Normally
Open
10 100 AC110/DC100 0.5
TANE-3/4B TC 1.1″(28) OPEN Normally
Closed
3 100 AC30/DC30 0.2
*TANE-3/4 TC
W/TAP-10 MAG
Special Order
.6″(15) CLOSED Normally
Open
10 100 AC110/DC100 0.5

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing

Outline Dimensions Unit: inch(mm)

TANE-3/4 TC/TANE-3/4B TC

TANE-3/4 TC/TANE-3/4B TC

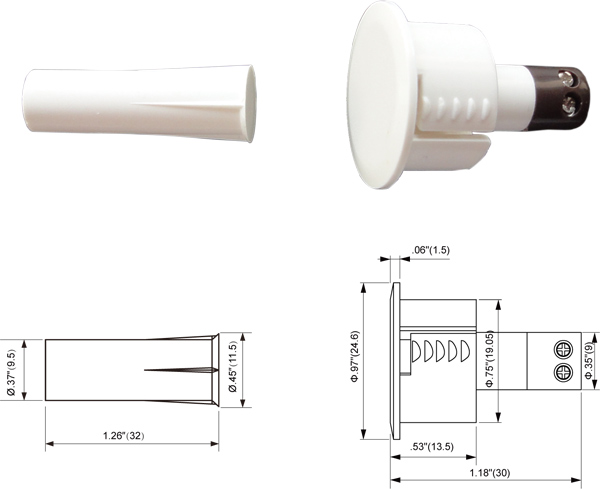

TANE-3/4 TC W/TAP-10 MAG

TANE-3/4 TC W/TAP-10 MAG
