TANE-22 & TANE-22 TC

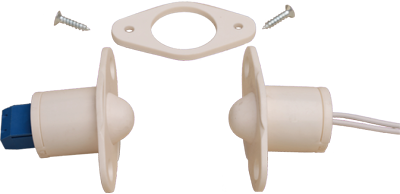

TANE-22 & TANE-22 TC.73″(18.5mm) Stubby “Button Ball” Reed Contact

Contact Size:
TANE-22: .73″×1.21″(18.5mm×30.7mm)
TANE-22 TC: .73″×1.6″(18.5mm×40.7mm)
Standard Magnet Size: NA
Standard Gap: NA
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard TANE-22
Longer leads available.
TANE-22 TC: Terminal Connect

  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE-22 NA CLOSED Normally
Open
1 100 AC24/DC24 0.1
TANE-22 TC NA CLOSED Normally
Open
1 100 AC24/DC24 0.1

OPERATING TEMPERATURE:-40°C to +60°C


Outline Dimensions Unit: inch(mm)

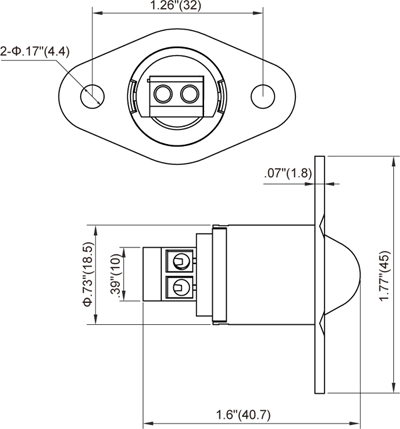

TANE-22TC

TANE-22TC

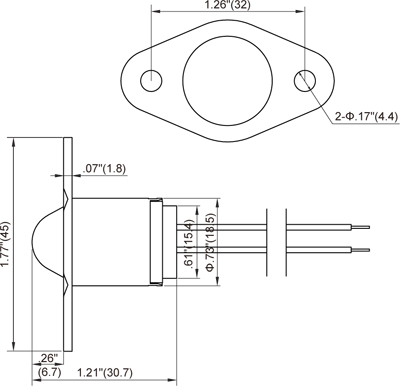

TANE-22

TANE-22
