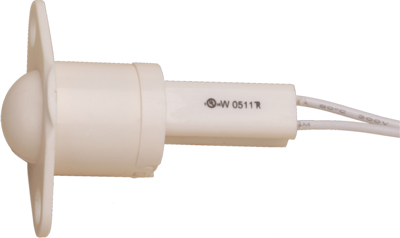

RB-32

RB-32.72″(18.2mm) True “Roller Ball” Reed Contact

Contact Size: .72″×1.89″(18.2mm×48mm)
Standard Magnet Size: NA
Standard Gap: NA
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
RB-32 NA CLOSED Normally
Open
10 100 AC110/DC100 0.5
RB-33 NA OPEN Normally
Closed
3 100 AC30/DC30 0.2
* RB-34
(Special Order)
NA SPDT SPDT 3 100 AC30/DC30 0.2

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing

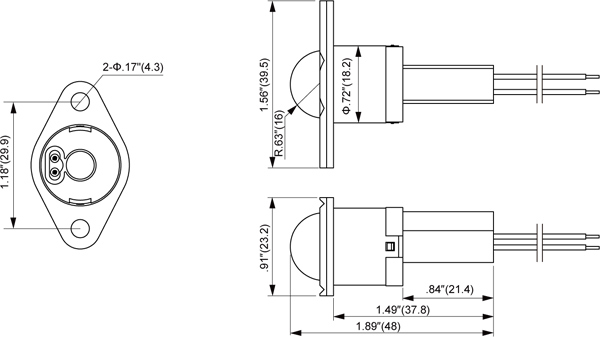

Outline Dimensions Unit: inch(mm)

RB-32/RB-33

RB-32/RB-33

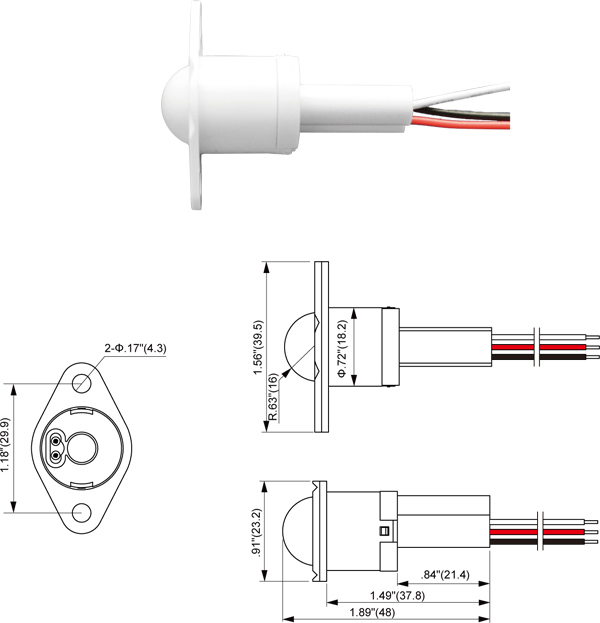

RB-34

RB-34

RB-34 Wiring Diagram

RB-34 Wiring Diagram
