PB-52 & PB-52 TC

PB-52 & PB-52 TC.75″(19mm) Reed Push-Button Jamb-Switch

Contact Size:
PB-52: .75″×1.7″(19mm×43.3mm)
PB-52 TC: .75″×1.73″(19mm×44mm)
Standard Magnet Size: NA
Standard Gap: NA
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard PB-52
Longer leads available.
PB-52 TC: Terminal Connect, No Leads.

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
PB-52 NA CLOSED Normally
Open
10 100 AC110/DC100 0.5
PB-52 TC NA CLOSED Normally
Open
10 100 AC110/DC100 0.5

OPERATING TEMPERATURE:-40°C to +60°C

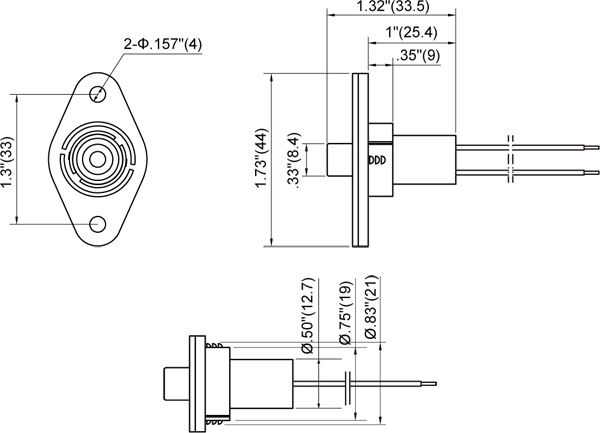

Outline Dimensions Unit: inch(mm)

PB-52

PB-52

PB-52 TC

PB-52 TC
