MINI-DISC

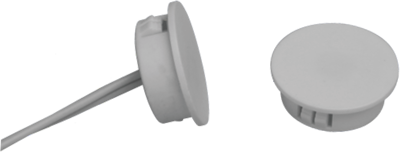

MINI-DISC.59″(15mm) × .25″(6.3mm) Recessed Type

Contact Size: .59″×.25″(18mm×6.3mm)
Standard Magnet Size: .59″×.25″(18mm×6.3mm)
Standard Gap: .31″(8mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
MINI DISC .31″(8) CLOSED Normally
Open
1 100 AC24/DC24 0.1

OPERATING TEMPERATURE:-40°C to +60°C


Outline Dimensions Unit: inch(mm)

MINI-DISC

MINI-DISC

PDF Document Installation Instructions


PDF Document
