MINI-15

MINI-15.25″(6.4mm) × .57″(14.5mm) Recessed Type

Contact Size: .25″×.57″(6.3mm×14.5mm)
Standard Magnet Size: .25″×.31″(6.4mm×8mm)
Standard Gap: .5″(12.5mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
MINI-15 .5″(12.5) CLOSED Normally
Open
1 100 AC24/DC24 0.1
MINI-15 W/.54 .6″(15) CLOSED Normally
Open
1 100 AC24/DC24 0.1
MINI-15 W/.79 .75″(19) CLOSED Normally
Open
1 100 AC24/DC24 0.1
MINI-15 DM .5″(12.5) CLOSED Normally
Open
1 100 AC24/DC24 0.1

OPERATING TEMPERATURE:-40°C to +60°C


Outline Dimensions Unit: inch(mm)

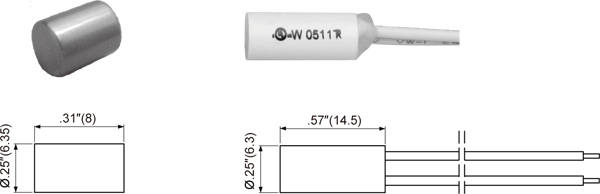

MINI-15

MINI-15

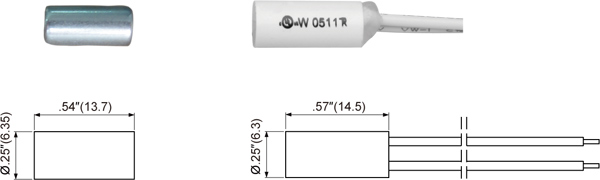

MINI-15 W/.54

MINI-15 W/.54

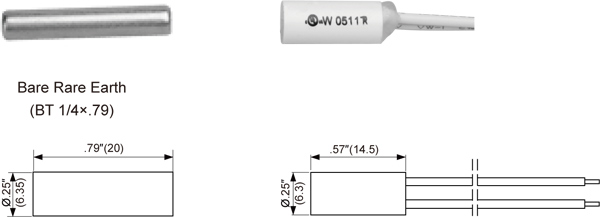

MINI-15 W/.79

MINI-15 W/.79

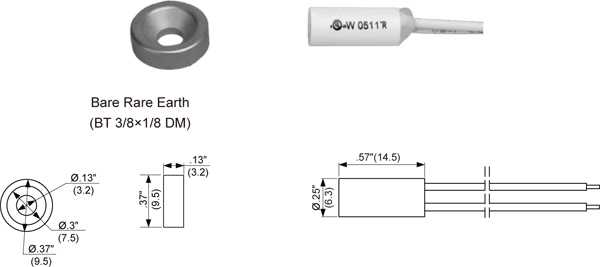

MINI-15 DM

MINI-15 DM
