MINI-10

MINI-10.37″(9.5mm) Mini-Recessed Type

Contact Size: .37″×.61″(9.5mm×15.5mm)
Standard Magnet Size: .37″×.61″(9.5mm×15.5mm)
Standard Gap: .5″(12.5mm)
Colors: White, Brown
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
MINI-10 .5″(12.5) CLOSED Normally
Open
10 100 AC24/DC24 0.1
MINI-10 WG 1″(25) CLOSED Normally
Open
10 100 AC24/DC24 0.1
MINI-10 W/STB-10 .5″(12.5) CLOSED Normally
Open
10 100 AC24/DC24 0.1
MINI-10 DM .5″(12.5) CLOSED Normally
Open
10 100 AC24/DC24 0.1

OPERATING TEMPERATURE:-40°C to +60°C


Outline Dimensions Unit: inch(mm)

MINI-10

MINI-10

MINI-10 WG

MINI-10 WG

MINI-10 W/STB-10

MINI-10 W/STB-10

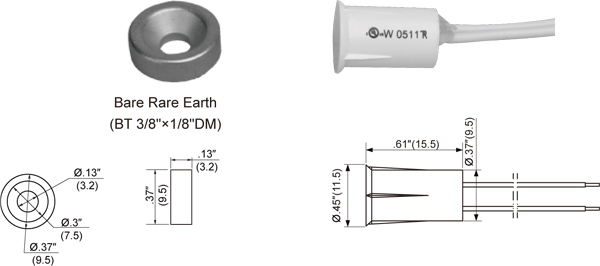

MINI-10 DM

MINI-10 DM


PDF Document
