TANE-86

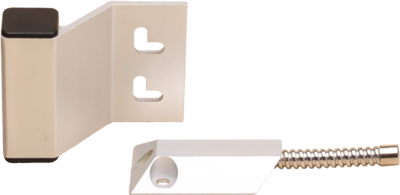

TANE-862.13″L×1.37″W×.37″H Mini Overhead Door (Armored) Commercial Type

Contact Size: 2.13″L×1.37″W×.37″H
(54mm×34.7mm×9.5mm)
Standard Magnet Size: 2.64″L×2.13″W×1.13″H
(67mm×54mm×28.7mm)
Standard Gap: 2.5″(64mm)
Colors: Aluminum Case
18″(458mm) Armored Leads Standard
36″(915mm) Armored Leads Available

  • PDF Document
  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part NumberGap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE-86 Mini2.5″(64)CLOSEDNormally
Open
10100AC110/DC1000.5
* TANE-87 Mini
Special Order
2.05″(52)OPENNormally
Closed
3100AC30/DC300.2
* TANE-88 Mini
Special Order
1.97″(50)SPDTSPDT3100AC30/DC300.2

OPERATING TEMPERATURE:-40°C to +60°C

*SPECIAL ORDER – Call for Min. Order Qty. – Leadtime – Pricing


Outline Dimensions Unit: inch(mm)

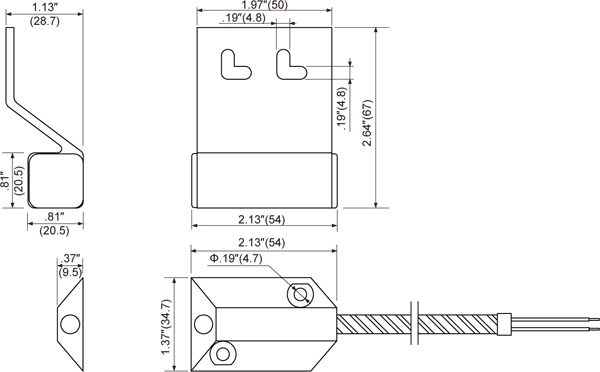

TANE-86 Mini/TANE-87 Mini

TANE-86 Mini/TANE-87 Mini

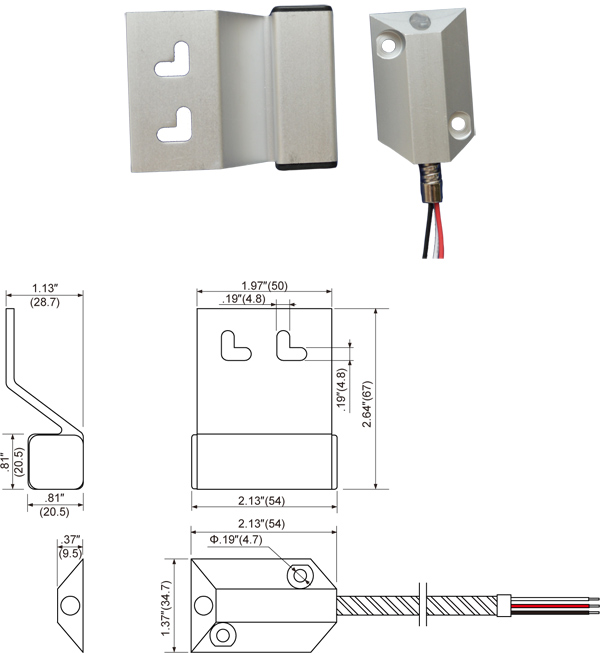

TANE-88 Mini

TANE-88 Mini

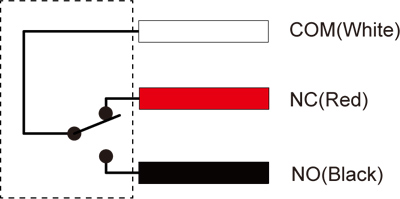

TANE-88 Mini Wiring Diagram

TANE-88 Mini Wiring Diagram

PDF Document Installation Instructions


PDF Document
