TANE-66 WG

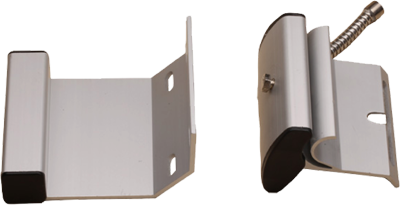

TANE-66 WGTrack Mount Overhead Door Commercial Type

Contact Size: 2.76″L×3.15″W×1.57″H
(70mm×80mm×40mm)
Standard Magnet Size: 3.54″L×3.1″W×1.57″H
(90mm×78.8mm×40mm)
Standard Gap: 2.5″(64mm)
Colors: Aluminum
18″(458mm) Armor Leads Standard
36″(915mm) Armor Leads Available

  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE-66 WG 2.5″(64) CLOSED Normally
Open
10 100 AC110/DC100 0.5
TANE-67 WG 2.2″(55) OPEN Normally
Closed
3 100 AC30/DC30 0.2
TANE-68 WG 2.2″(55) SPDT SPDT 3 100 AC30/DC30 0.2
TANE-68 WG-WP18 2.2″(55) SPDT SPDT 3 100 AC30/DC30 0.2

OPERATING TEMPERATURE:-40°C to +60°C


Outline Dimensions Unit: inch(mm)

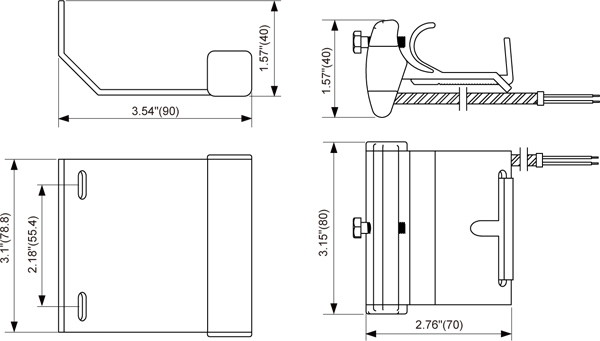

TANE-66 WG/TANE-67 WG

TANE-66 WG/TANE-67 WG

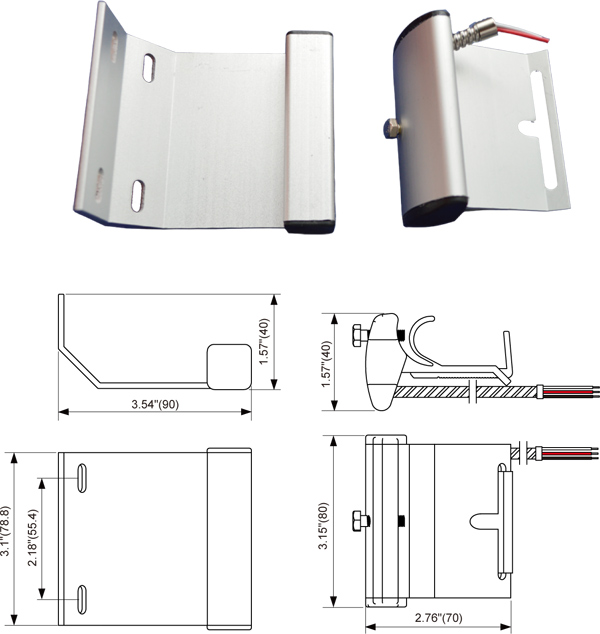

TANE-68 WG
TANE-68 WG WP18

TANE-68 WG

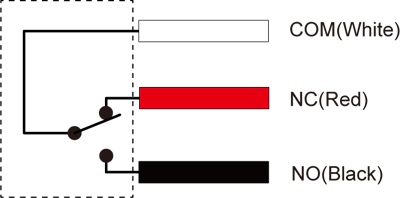

TANE-68 WG Wiring Diagram
TANE-68 WG WP18 Wiring Diagram

TANE-68 WG Wiring Diagram

PDF Document Installation Instructions


PDF Document
