MET-44 WG

MET-44 WG

MET-46 WG-WP18 (Water Resistant – SPDT)

4.22″L×1.73″W×.47″H Surface Mount Armored Commercial Type

Contact Size: 4.22″L×1.73″W×.47″H
(107.2mm×44mm×12mm)
Standard Magnet Size: 4.13″L×2.42″W×1.5″H
(105mm×61.7mm×38mm)
Standard Gap: 2″(50mm)
Colors: Aluminum Case
18″(458mm) Armored Leads
36″(915mm) Armored Leads Available

  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part Number Gap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
MET-44 WG 2″(50) CLOSED Normally
Open
10 100 AC110/DC100 0.5
MET-45 WG 1.93″(49) OPEN Normally
Closed
3 100 AC30/DC30 0.2
MET-46 WG 1.93″(49) SPDT SPDT 3 100 AC30/DC30 0.2
MET-46 WG-WP18 1.93″(49) SPDT SPDT 3 100 AC30/DC30 0.2

OPERATING TEMPERATURE:-40°C to +60°C

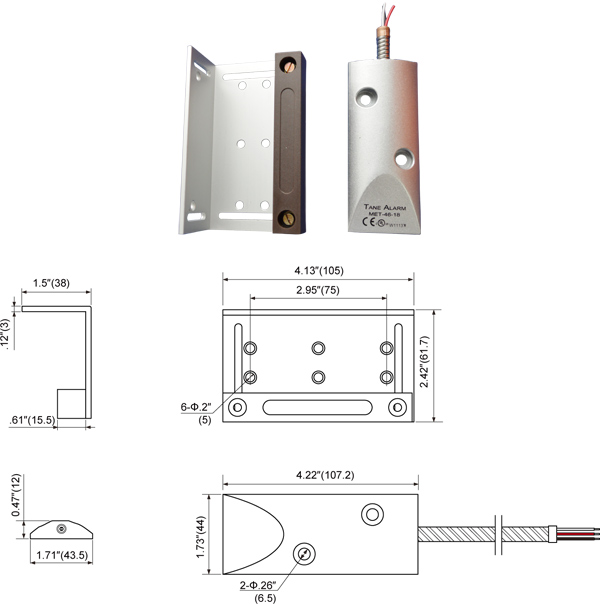

Outline Dimensions Unit: inch(mm)

MET-44 WG/MET-45 WG

MET-44 WG/MET-45 WG

MET-46 WG
MET-46 WG-WP18

MET-46 WG

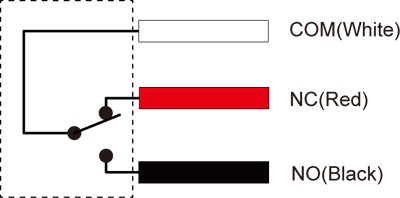

MET-46 WG & MET-46 WG-WP18 Wiring Diagram

MET-46 WG Wiring Diagram

PDF Document Installation Instructions


PDF Document
