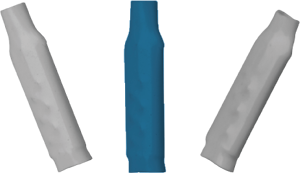

B-Connectors

B-Connectors(DRY FILLED w/WHITE SLEEVE)
(SILICONE FILLED w/BLUE SLEEVE)

MATERIALS:
Outer Shell: Plastic Heat Shrink Tubing
Metal Housing: Brass
Inner Sleeve: Beryllium Copper plated with Bright Nickel
Contact Resistance: 10 Milli Ohoms Initial
Dielectric: 1000 V
Strength of Joint: 9 lbs

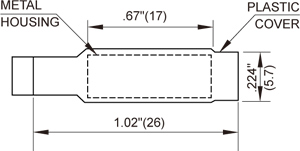

B-Connectors-diagram


PDF Document
